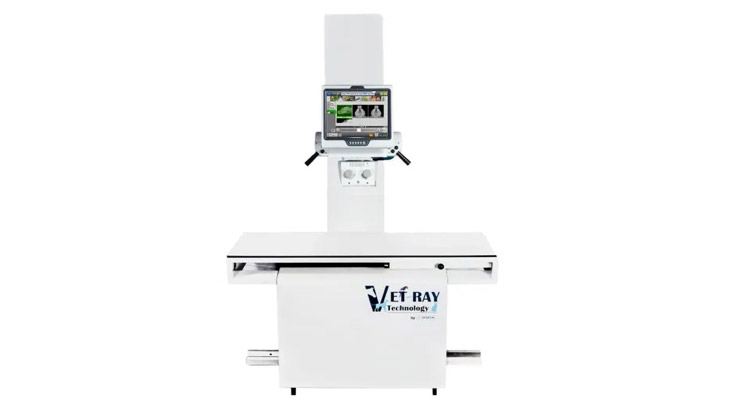

Sedecal Vet-Ray Analog X-Ray System

Simple, dependable and smart

This top-notch analog X-ray system for veterinary clinics offers:
  • Touch screen monitor system
  • Full 4-way float top table
  • Compact high frequency generator
  • Hands-free collimator light control and table lock release

Upgrade for digital X-ray
The 15" Touch Screen console upgrades to the 17" Single Touch II Integrated Console

Contact us about Vet-Ray
Overview
Specifications
  • 15" touch screen console with:
    • Anatomical program radiography (APR)
    • Heads-up mounting
    • Patient log files, eliminating hand paper logs
  • 32kW/400mA compact HF generator
  • Hands-free collimator light control
  • Variable SID for table top and cassette tray imaging
  • Rotating tube head and collimator
  • X-ray tube rotor brake
  • 4-way float top table – 5 ft standard
  • Moveable grid cabinet
  • 208/230/240 VAC single phase
Standard X-ray tube
1.0/2.0 focal spots
16" target angle
140,000 HU

Grid cabinet with:
8:1 103 line pair grid
Stainless steel cassette tray

Other options available
Custom (38: to 78") length table top
Fractional focal spot X-ray tubes
Non-certified medical collimator
3-phase and battery-powered generators
